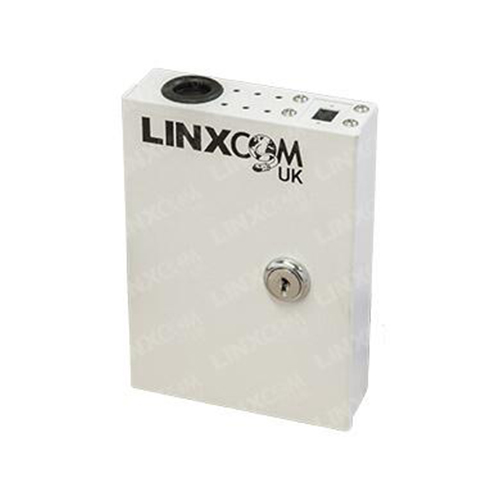

Indoor Terminal Box – Model 3

Fibre optic terminal box for small capacity applications up to 8 fibres.


Datasheet

Categories: ,




Description

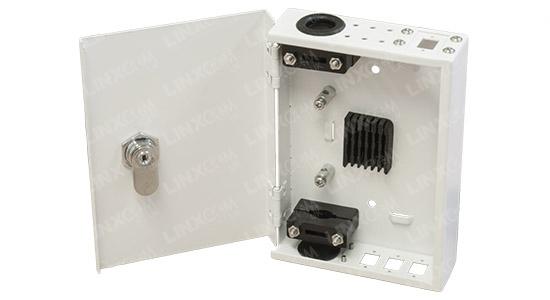

Linxcom Indoor Terminal Box – Model 3 is light and compact whilst maintaining adequate fibre storage needs and minimum bend radius.

Terminal Boxes can be wall or rack-mounted and have a variety of core capacities and adapter types available.


Features & Benefits

  • Connector for FC, SC, ST or LC
  • Up to 8 fibres
  • 2 cable entries
  • Cold-rolled steel chassis
  • Cable entry clamps
  • Cable tie positions
  • Houses splices, pigtails and adapters
  • IP50 rated
  • Complete with splice cassette, splice protection sleeves, fibre tubing, cables ties and wall fixings
  • Dimensions: 152 * 107 * 31mm

Applications

  • Data centres, premise installations and telecommunication networks
  • Ethernet, fibre channel, ATM, LAN, MAN and WAN
  • Data communication
  • Indoor applications
  • FTTH

Ordering Information

Part Number Selection

Generated Product Code:

LXMITB3..

Example: LXMITB3EMSCS – SC Simplex Indoor Terminal Box Model 3 Unloaded
