Description

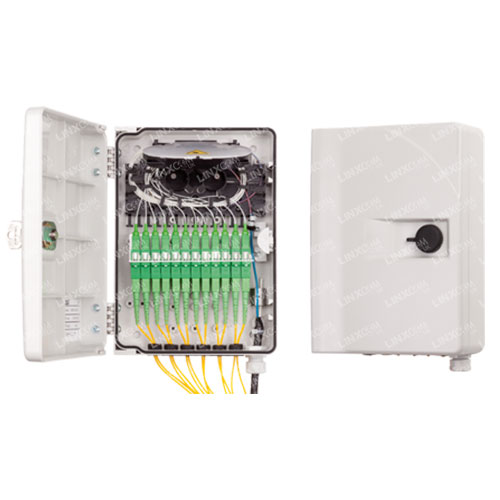

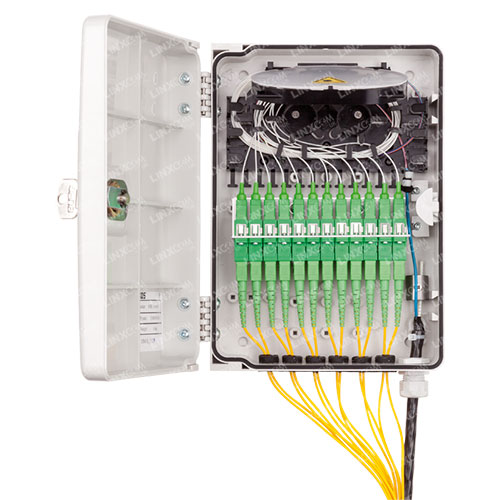

Outdoor Fibre Distribution Box 1 is designed for the placement of 12 optical connectors outdoor. The distribution box comes with a bracket, which enables it to be post-mounted.
Features & Benefits
- Up to 12 fibres
- IP Rating: IP54 to EN 60529 / IK to EN 50102
- Integrated fibre management + 1× KM3 splice tray for the placement of optical splices
- 1× PG bushing for input cable
- 6× Dividable rubber bushing 2× 1–3mm
- Lockable door
- Material: PC/ABS
- Dimensions: 154 x 235 x 68mm
Ordering Information
Part Number Selection
Generated Product Code:
LXMPMD01..12
Example: LXMPMD01EMSCS12 – Linxcom Unloaded SC Simplex Post-Mounted Outdoor Fibre Distribution Box 1
