Outdoor Fibre Distribution Box 2

FTTX Distribution Box, post-mounted up to 24 fibres.


Contact

Categories: ,




Description

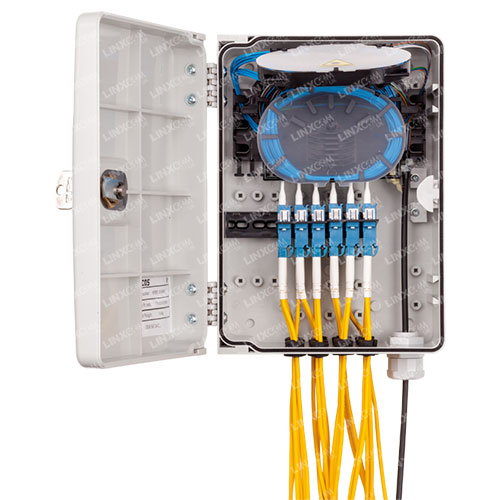

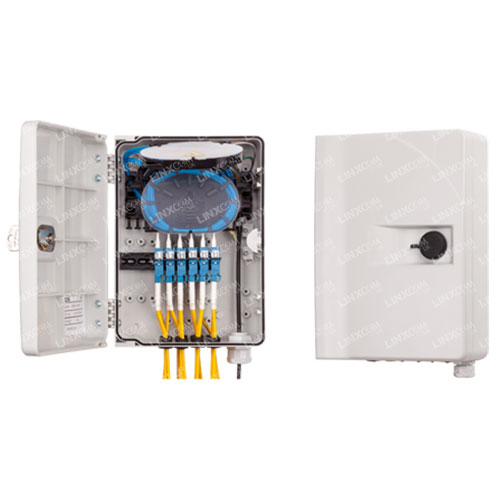

Outdoor Fibre Distribution Box 2 is designed for the placement of 24 optical connectors outdoor. The distribution box comes with a bracket, which enables it to be post-mounted.


Features & Benefits

  • Up to 24 fibres
  • IP Rating: IP54 to EN 60529 / IK to EN 50102
  • Integrated fibre management + 2× KM3 splice tray for the placement of optical splices
  • 1× PG bushing for input cable
  • 1× PG bushing with rubber insert for output patchcords
  • 12× Dividable rubber bushing 2× 1–3 mm for output patchcords
  • Lockable door
  • Material: PC/ABS
  • Dimensions: 154 x 246 x 90mm / 373 x 250 x 90mm

Ordering Information

Part Number Selection

Generated Product Code:

LXMPMD02..24

Example: LXMPMD02EMSCS24 – Linxcom Unloaded SC Simplex Post-Mounted Outdoor Fibre Distribution Box 2
